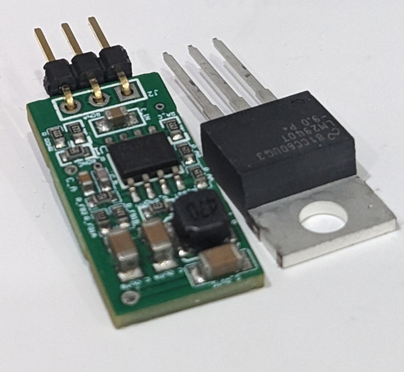

GDCVRR5164-XXX-XX LDO Replacement Buck Converter
A Low ripple Voltage regulator based on the Texas Instruments LM5164 supporting 3.3V to 48V at up to 1A from a maxium input voltage of 50V. It requires no supporting components and no thermal management. Ideal to replace Linear voltage regulators in high voltage situations.

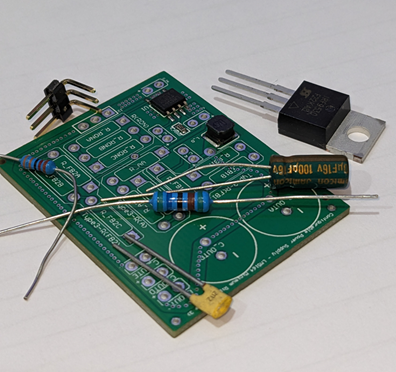

GDCVRR5164-DEV Development LDO Replacement Buck Converter
A development board utilising the Texas Instruments LM5164 supporting 3.3V to 50V output from a maximum of 100V input. This board has through-hole component footprints to support customised output voltages. Choose high voltage input capacitors and timing resistors to support up to 100V.
Texas Instruments LM5164 Datasheet

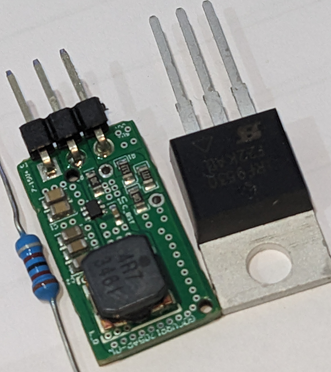

GDCVRR1205AP 3.3-5V 2A Adjustable LDO Replacement Buck Converter
Pin-for-pin replacement of TO-220 Linear Voltage regulators based on the Diodes Incorporated AP62200 buck converter. This device is designed to replace 3.3V to 5V Linear voltage regulators from power sources up to 15V. No support components or thermal managments is required. Default operation is 5V. Adding a 78kOhm resistor reduces output voltage to 3.3V.
Diodes Incorporated AP62200
